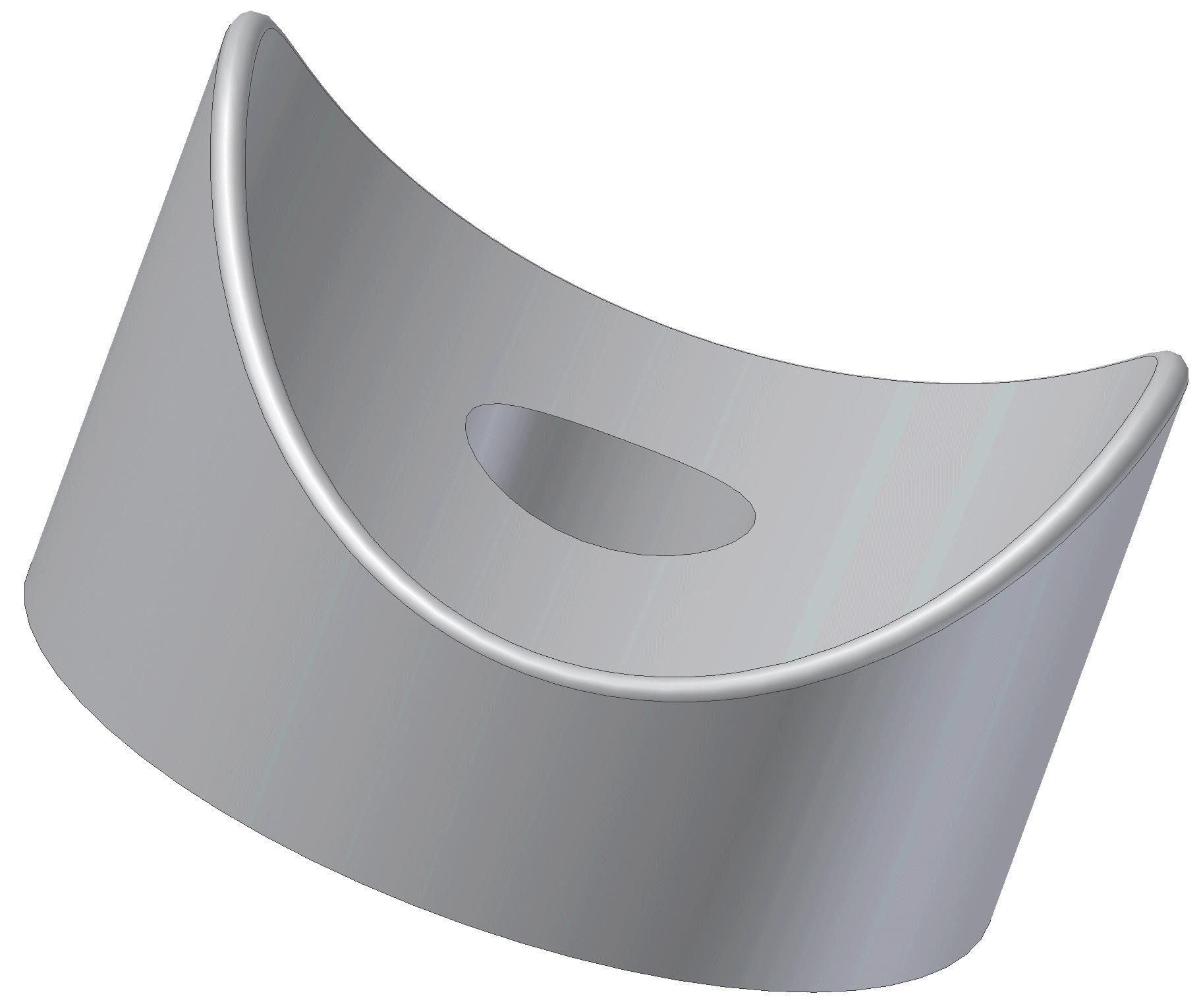

Concave discs
Ordering data / example:

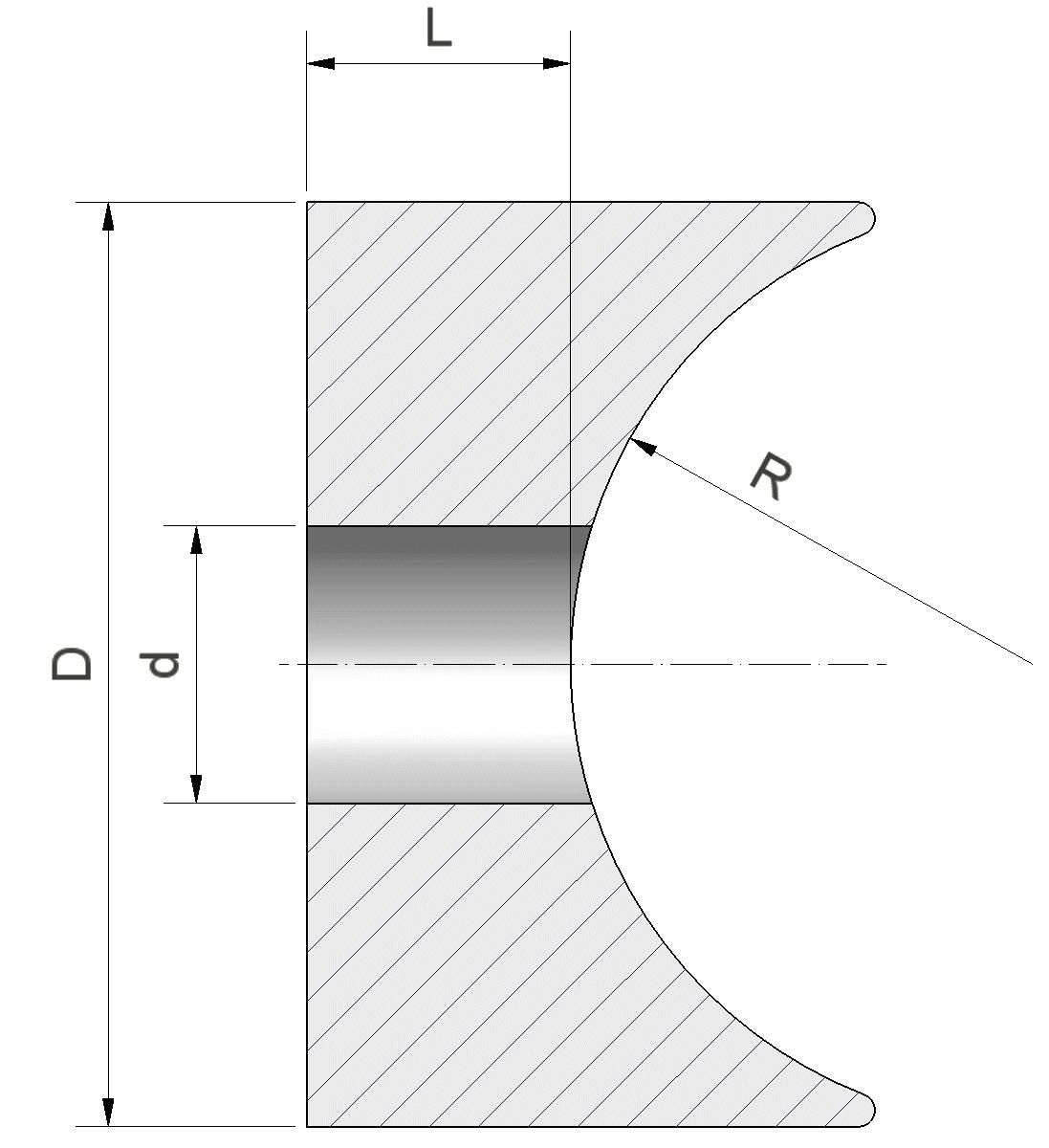

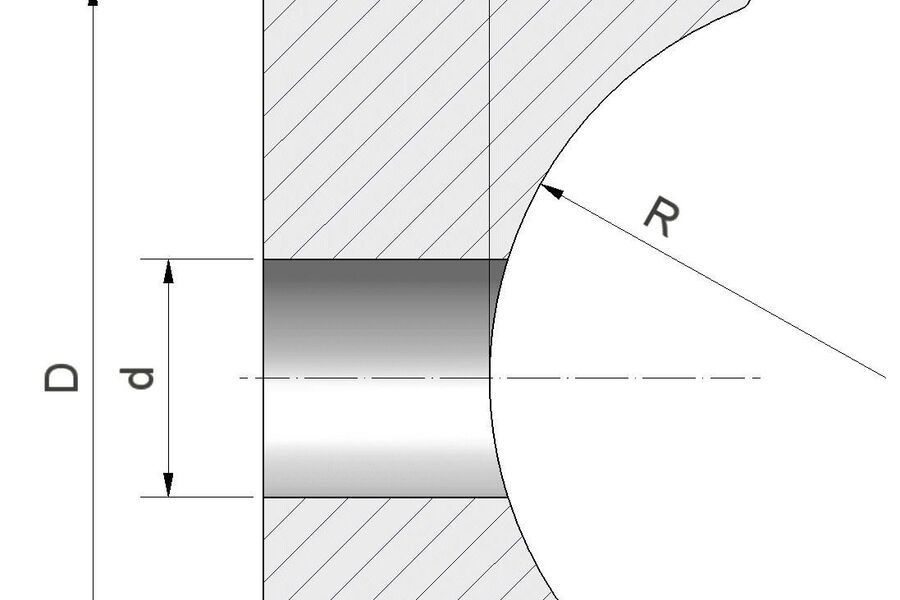

| Outer bore Ø | / | Inner bore Ø | / | Radius | / | Length | / | Material | / | Colour |
| K20 | / | 8.4 | / | 10 | / | 12 | / | PA | / | black |
| Outer bore- D(mm) | 10 | 12 | 15.5 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 38 | 40 |
| Inner bore- d(mm) | 5.3 | 5.3 | 5.3 | ||||||||||
| 6.4 | 6.4 | 6.4 | 6.4 | ||||||||||
| 8.4 | 8.4 | 8.4 | 8.4 | 8.4 | |||||||||
| 10.5 | 10.5 | 10.5 | 10.5 | ||||||||||
| Radius R | 8 | 10 | 11 | 12 | 14 | ||||||||
| Length- L (mm) | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 | 1-35 |
Production lengths from 1mm to 35mm in 0.1mm stages (special sizes on request)
Colours: black, natural, white (special colours on request)
Material: PA, PE (special requirements on request)
Dimension tolerances must be derived from the sample parts!
