X0301-150/180/28

X0301-150/180/28

X0301-150/180/28
X0301-150/180/28
Art. No. Diameter Diameter Tyre width Hub length Axial dimension Tyre tread Fastener Load capacity Ball bearing

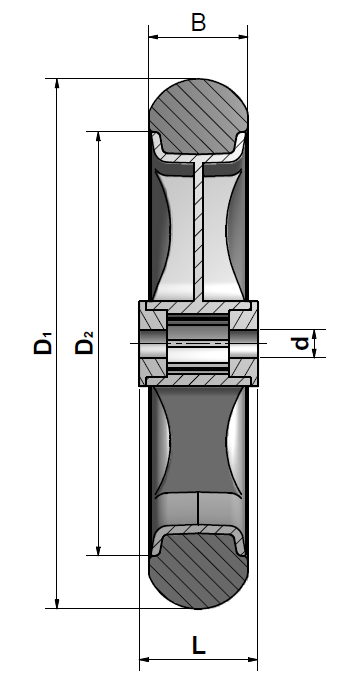

Diameter D1 Diameter D2 Tyre width B Hub length L Axial dimension d     Load capacity
X0301-98,5/125/30 125 mm 98,5 mm 30 mm 29,5 mm 10 mm smooth, round bush 35 kg ---
X0301-98,5/125/30 125 mm 98,5 mm 30 mm 29,5 mm 10 mm smooth, round --- 35 kg X
X0301-98,5/125/30 125 mm 98,5 mm 30 mm 29,5 mm 6 mm smooth, round --- 35 kg X
X0301-120/150/28 150 mm 120 mm 28 mm 29,5 mm 10 mm smooth, round bush 35 kg ---
X0301-120/150/28 150 mm 120 mm 28 mm 29,5 mm 10 mm smooth, round --- 35 kg X
X0301-120/150/28 150 mm 120 mm 28 mm 29,5 mm 6 mm smooth, round --- 35 kg X
X0301-150/180/28 180 mm 150 mm 28 mm 29,5 mm 10 mm smooth, round bush 35 kg ---
X0301-150/180/28 180 mm 150 mm 28 mm 29,5 mm 10 mm smooth, round --- 35 kg X
X0301-150/180/28 180 mm 150 mm 28 mm 29,5 mm 6 mm smooth, round --- 35 kg X

Colour - rim: red, black, grey (standard), special colours on request.

Colour - tyre: black (standard), special colours on request.

Colour - fastener: black (standard), special colours on request.

Material - rim: PA

Material - tyre: EVA

Material - fastener: PA 6.6

X0301-150/180/28
