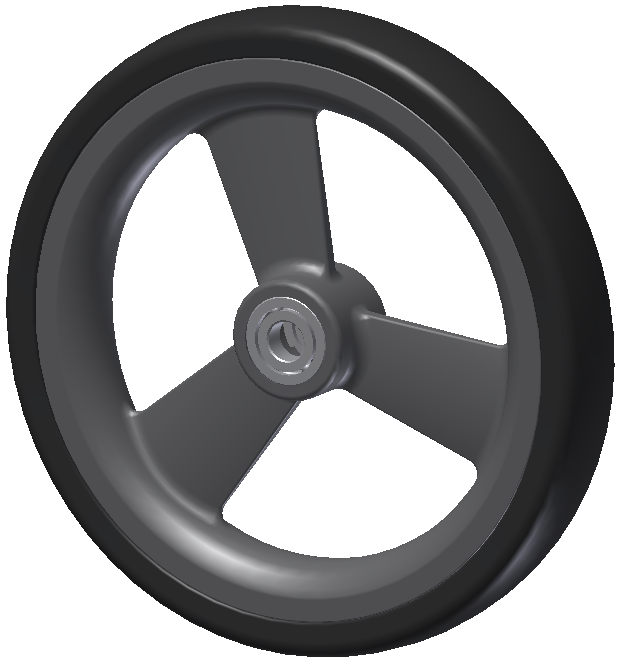

X0305-175/200/30

X0305-175/200/30

X0305-175/200/30
X0305-175/200/30

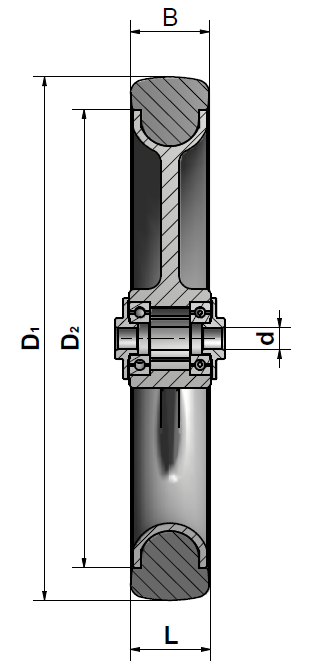

Art.-No. Diameter Diameter Tyre width Hub length Axial dimension Tyre tread Fastener Load capacity Ball bearing
Diameter D1 Diameter D2 Tyre width B Hub length L Axial dimension d     Load capacity
X0305-100/125/30 125 mm 100 mm 30 mm 31 mm 8 mm smooth, flat --- 50 kg X
X0305-100/125/30 125 mm 100 mm 30 mm 31 mm 10 mm smooth, flat --- 50 kg X
X0305-100/125/30 125 mm 100 mm 30 mm 31 mm 12 mm smooth, flat --- 50 kg X
X0305-125/150/30 150 mm 125 mm 30 mm 31 mm 8 mm smooth, flat --- 50 kg X
X0305-125/150/30 150 mm 125 mm 30 mm 31 mm 10 mm smooth, flat --- 50 kg X
X0305-125/150/30 150 mm 125 mm 30 mm 31 mm 12 mm smooth, flat --- 50 kg X
X0305-136/154/32 154 mm 136 mm 32 mm 31 mm 8 mm smooth, flat --- 50 kg X
X0305-136/154/32 154 mm 136 mm 32 mm 31 mm 10 mm smooth, flat --- 50 kg X
X0305-136/154/32 154 mm 136 mm 32 mm 31 mm 12 mm smooth, flat --- 50 kg X
X0305-175/200/30 200 mm 175 mm 30 mm 31 mm 8 mm smooth, flat --- 50 kg X
X0305-175/200/30 200 mm 175 mm 30 mm 31 mm 10 mm smooth, flat --- 50 kg X
X0305-175/200/30 200 mm 175 mm 30 mm 31 mm 12 mm smooth, flat --- 50 kg X

Colour - rim: black or grey (standard), special colours on request.

Colour - tyre: black (standard), special colours on request.

Colour - fastener: black (standard), special colours on request.

Material - rim: PA (15% glass fiber) or PP

Material - tyre: TPU (75 Shore) / TPE (45 Shore ) / EVA (except X0305-125/150/30 & X0305-136/154/32)

Material - fastener: PP

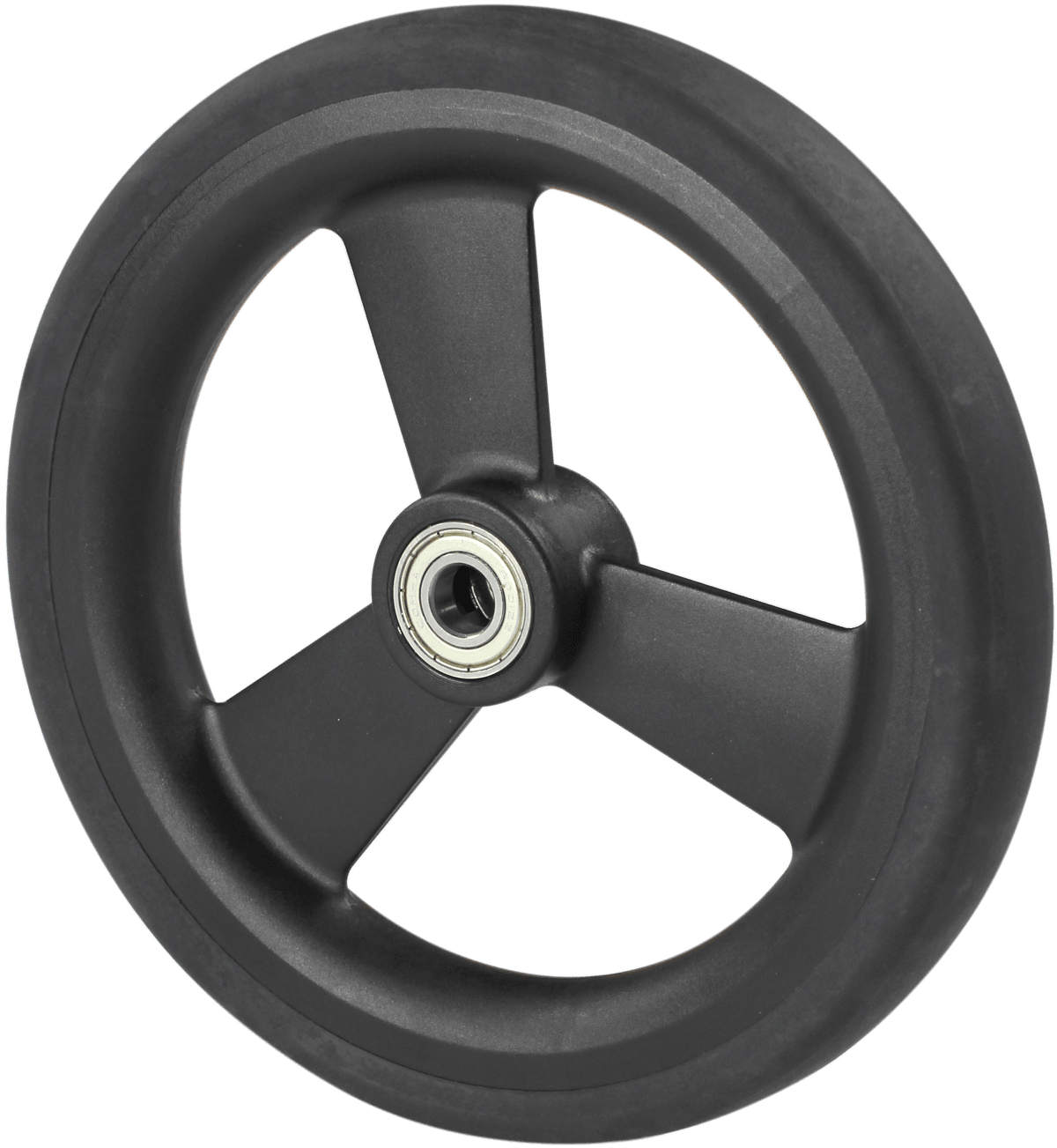

X0305-175/200/30

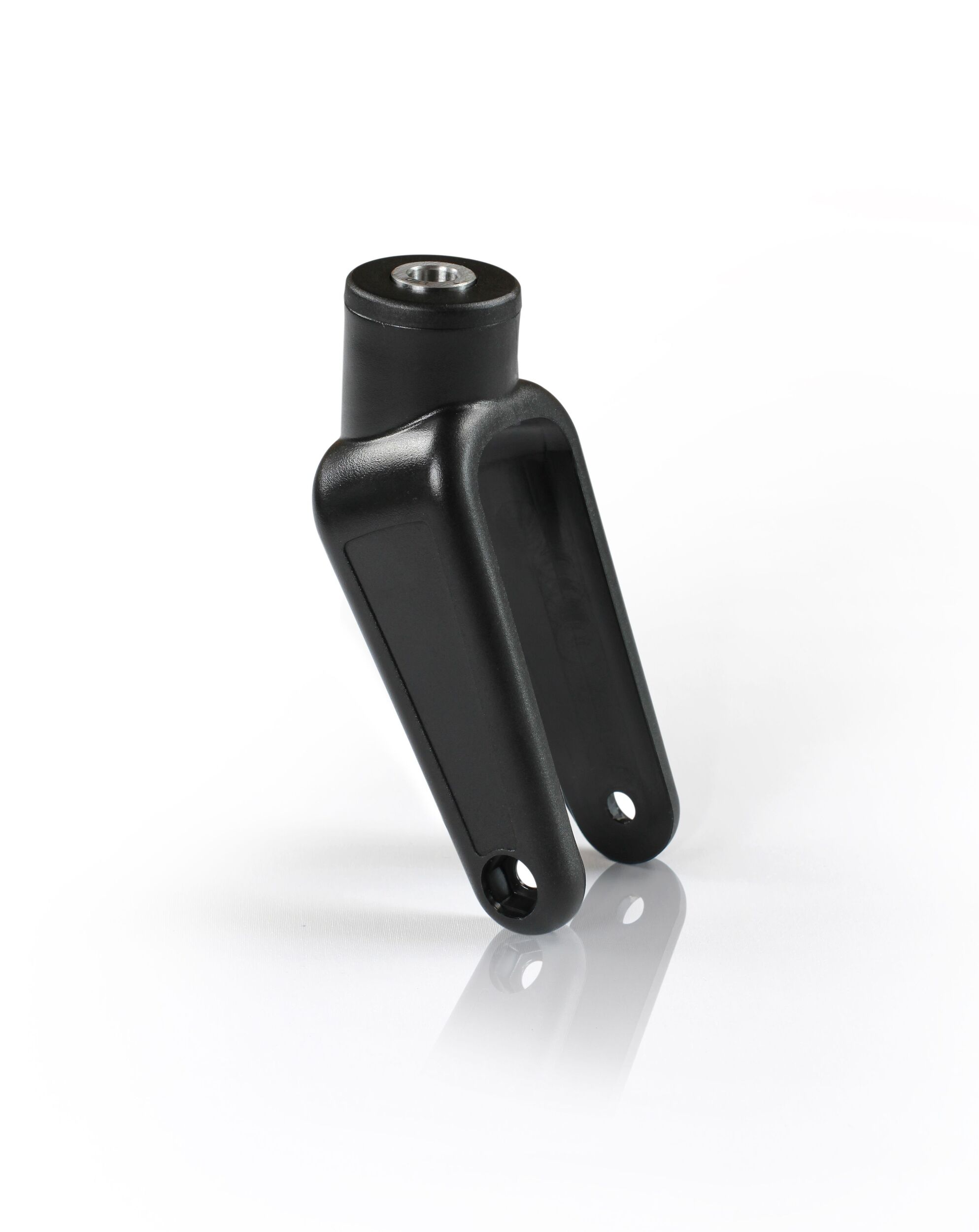

Steering fork

Steering fork 200x42

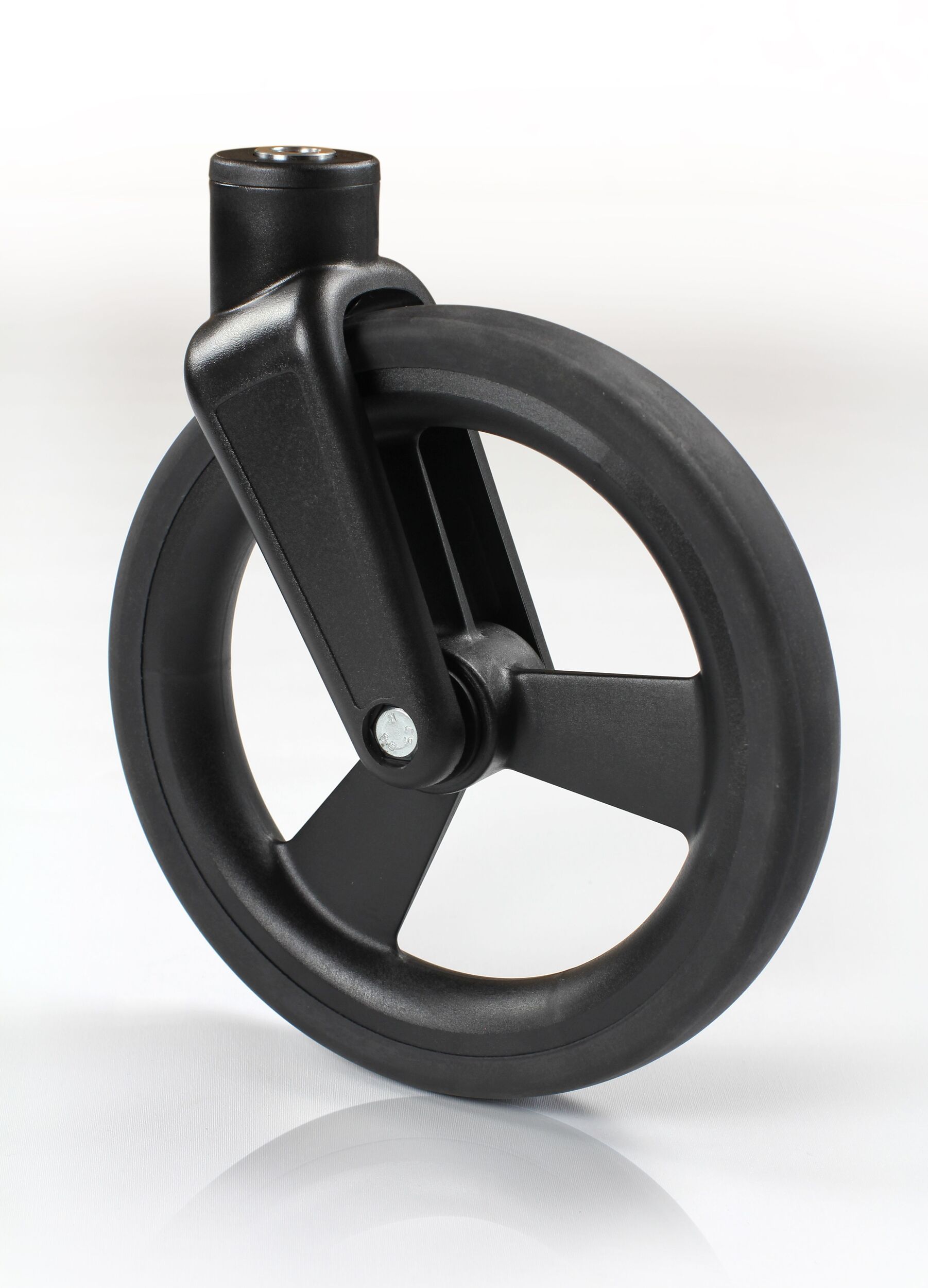

Typical assembly

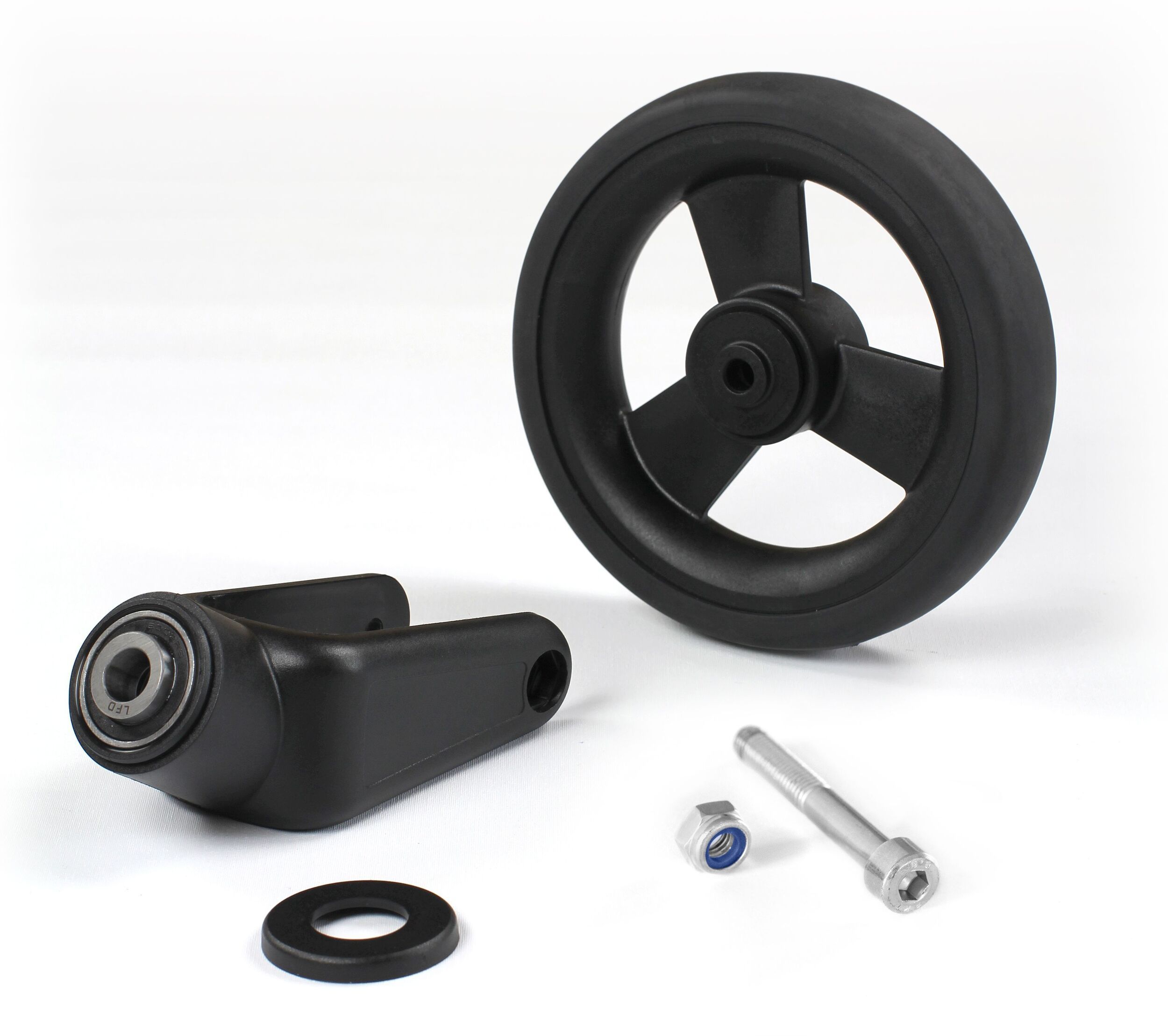

assembly group
LG-200-42-12
