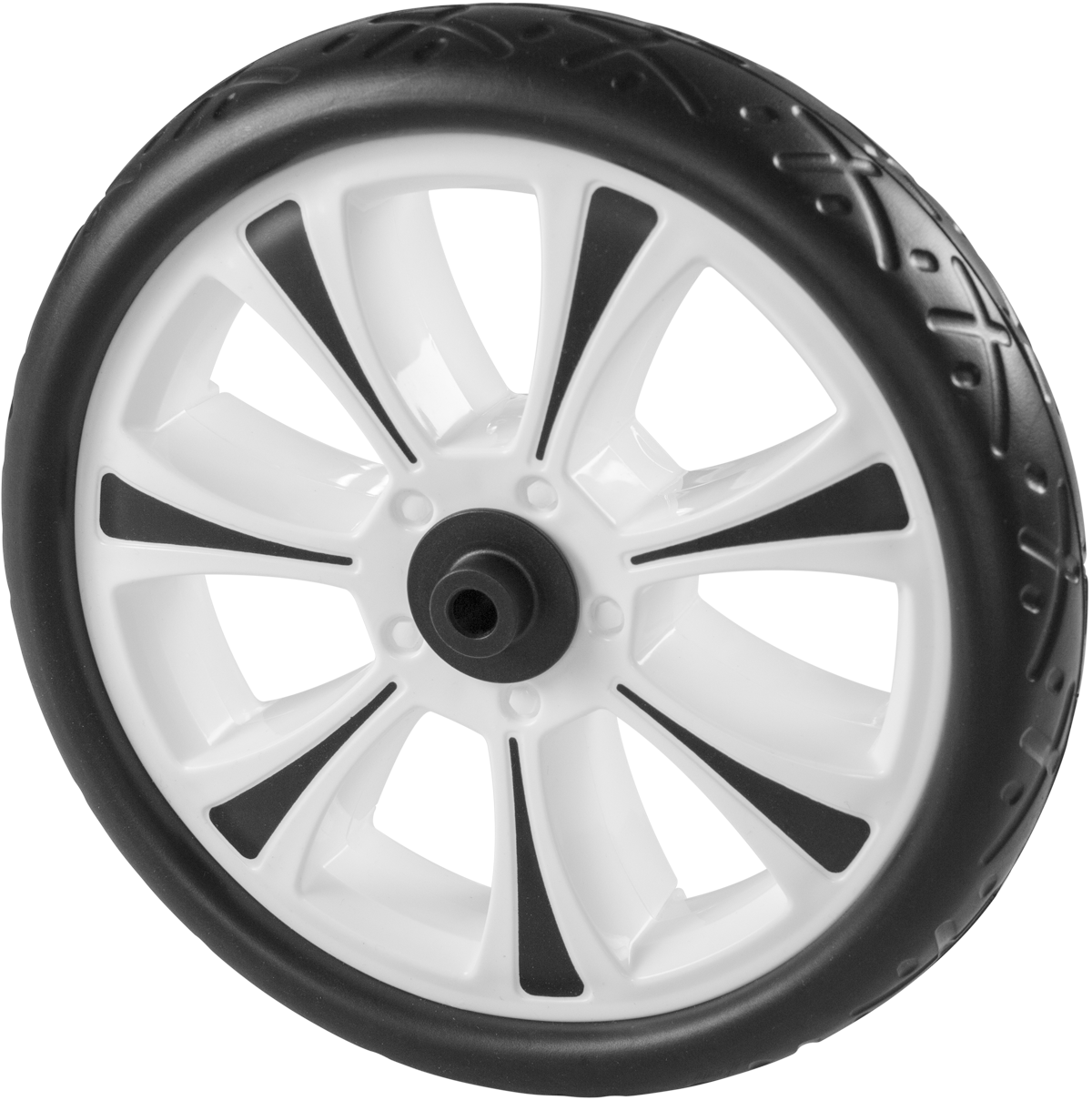

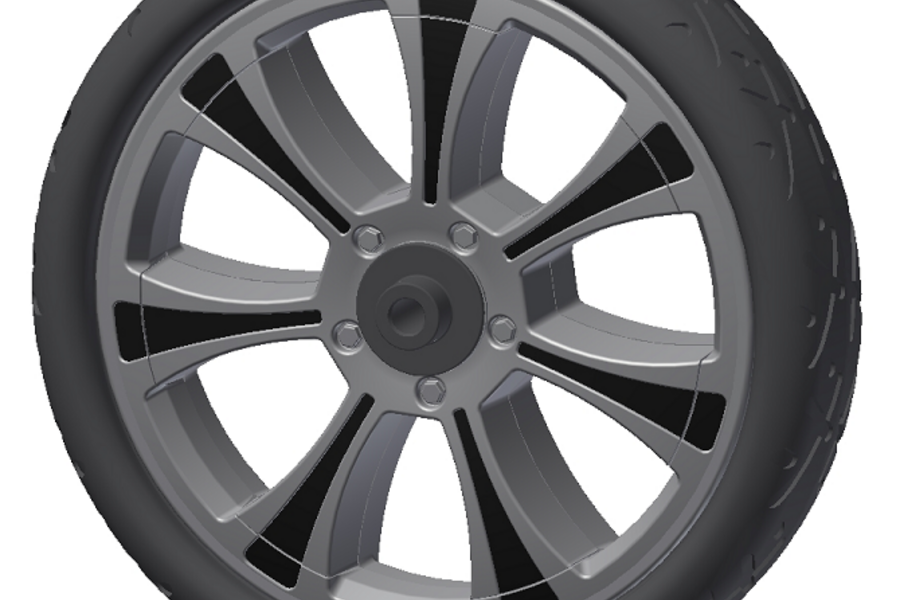

X0702-160/195/45

Art. No. Diameter Diameter Tyre width Hub length Axial dimension Tyre tread Fastener Load capacity Ball bearing

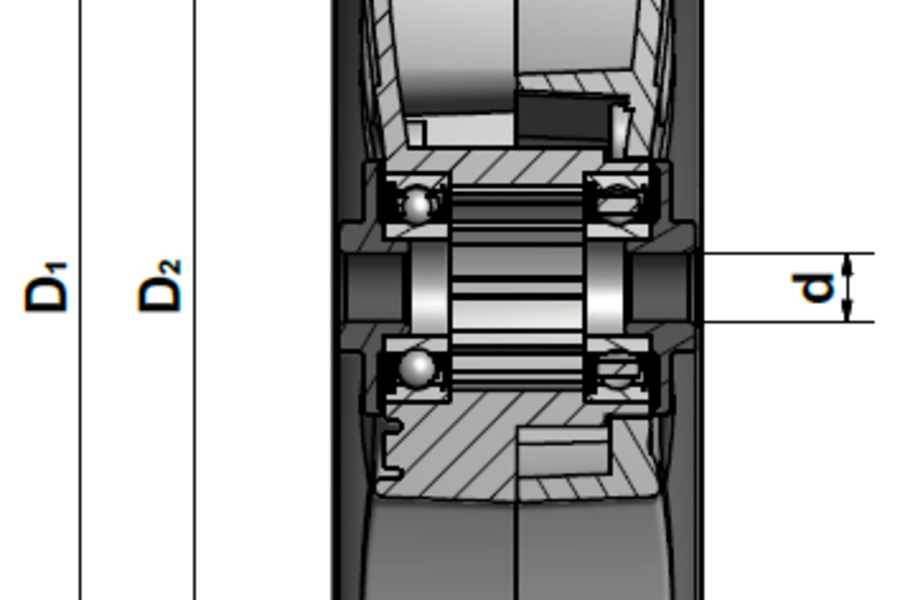

Diameter D1 Diameter D2 Tyre width B Hub length L Axial dimension d     Load capacity
X0702-140/180/45 180 mm 140 mm 45 mm 45 mm 10 mm blade profile push button 40 kg
X0702-140/180/45 180 mm 140 mm 45 mm 32.5 mm 8 mm blade profile bush(fork wheel) 40 kg X
X0702-160/195/45 190 mm 160 mm 45 mm 32.5 mm 8 mm blade profile bush(fork wheel) 40 kg X
X0702-230/280/58 280 mm 230 mm 58 mm 45 mm 10 mm blade profile push button 40 kg X

Colour - rim: white (print: black)  /  silver (print: black)  /  black (print: silver), special colours on request.

Colour - tyre: black (standard), special colours on request.

Colour - fastener: silver, black (standard), special colours on request.

Material - rim: PP

Material - tyre: EVA

Material - fastener: PA 6.6 / PP

X0702-160/195/45
